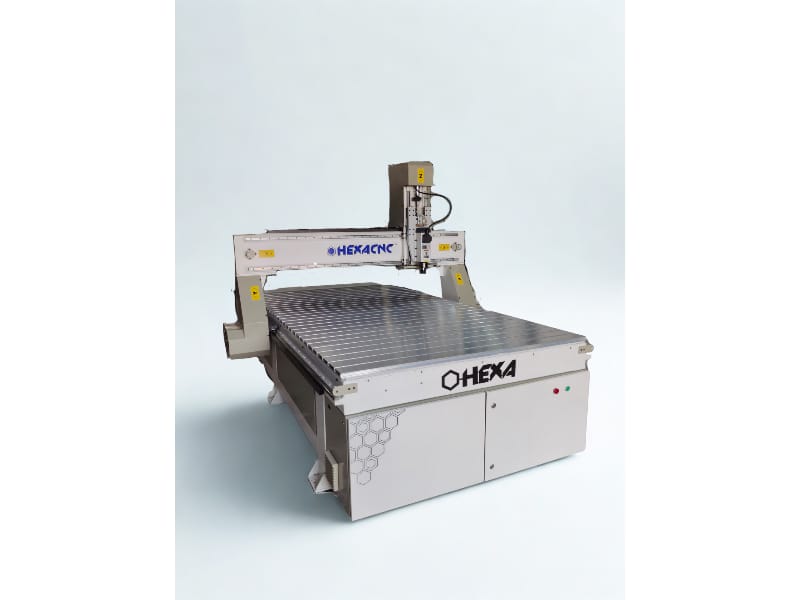

H1224E/S (8x4ft)
Wood Working Machines / CNC Router for Cutting and Carving
H1224E/S (8x4ft)
Precision engineered by HEXA CNC with high structural rigidity, top-tier CNC motion controls, and heavy-duty industrial components.
ISO 9001 Certified
Make in India
Comprehensive Warranty
Pan-India Support
Technical Overview & Specifications
Detailed engineering specifications, features, and capabilities.
Designed keep in mind the Hard wood processing and sheet processing, this machine is one of its kind built heavy to endure high cutting forces competitvely priced and high on performance.
| Bed Size | 4x8foot |
| Z height | 5 , 8, 12 inches Z height available. |
| Motion control | Stepper motors on all axis |
| Controls | Hand held and PC based controls available. |
| Spindle | 3KW air cooled , 18000 RPM. |
| Axis movement | Rack and Pinion on X and Y, ball screw on Z |
| Bed | Extruded aluminum Bed |
| Lubrication | Centralised lubrication on all linear guideway and ball screw. |
| Cables | Finolex and Lapp |
| Inverter ( VFD) | Delta, Fuji or similar Branded |
| Working voltage | Available in Single Phase and 3 Phase options. |
| Colour | Available in customer choice colours. |
| Speeds | Upto 15000 mm/min on X and Y, 1500 mm/min on Z |
| Accuracy | 0.03mm for every 300mm |
| Weight of Machine | 1200kilograms approximately. |
Note : Other spindle options available. This machine can handle spindles upto 11KW, including auto tool changer spindles.
