H-Series X Large Bed Format
Fiber Laser Cutting Machines
/Sheet Metal Cutting
Description :
Hexa H-Series B with Bevel Cutting Feature
Where Power Meets Perfect Geometry.
The Hexa H-Series B is engineered for advanced bevel cutting operations that demand power, precision, and perfect edge geometry. Designed for industries where weld-ready edges and complex profiles are critical, this system combines ultra-high-power laser capability with full-angle bevel control.

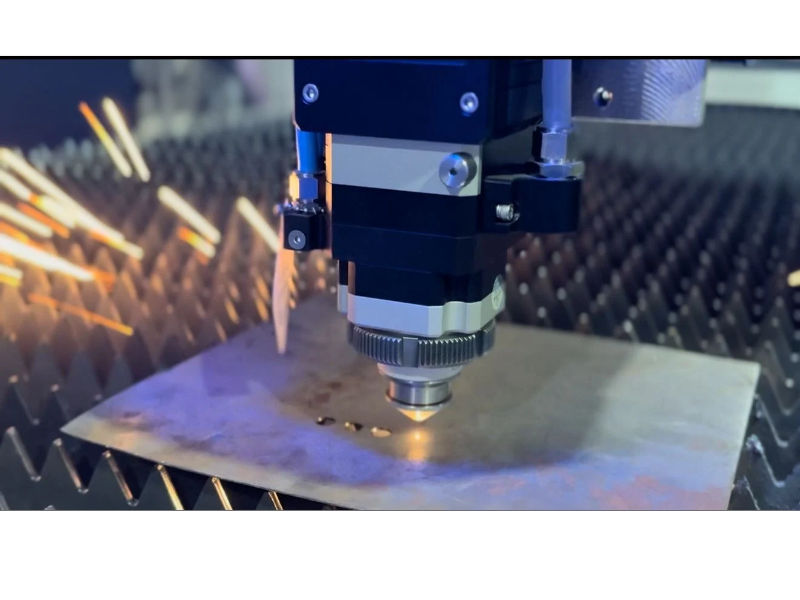

Equipped with a dedicated bevel cutting head, the H-Series B performs precise I-, V-, Y-, X-, and K-bevel cuts with an adjustable angle of up to 45 degrees, ensuring accurate edge preparation and superior weld fit-up.
Built on a reinforced modular structure and featuring a mild-steel tube gantry for maximum rigidity, the machine maintains stability even at extreme cutting powers — supporting laser sources from 12 kW up to 80 kW.
Powered by FACut control software and paired with Hypcut for flat cutting, the H-Series B offers seamless switching between standard and bevel operations with uncompromising accuracy.
Applications:
• Shipbuilding and offshore structures – weld-ready bevel cutting for hull plates and stiffeners
• Pressure vessel and boiler fabrication – precise V, X, Y, and K bevels for thick-wall joints
• Heavy fabrication and structural steel industries – accurate edge prep for I- and H-beams, girders, and columns
• Construction and infrastructure projects – weld-fit components for bridges, frames, and supports
• Energy and power-plant component manufacturing – turbine casings, ducts, and pipe sections
• Oil, gas, and petrochemical equipment – flange, tank, and pipeline beveling
• Railway and transport industries – chassis and underframe component cutting
• Industrial machinery and OEM fabrication – beveled sheet and plate parts for assembly precision
Technical Specifications:
| Model | HB2040 HB2665 HB2680 HB3080 HB26120 HB26140 HB35140 |
| Processing Format (L*W) | 2000X4000 2600X6500 2600X8000 3000X8000 2600X12000 2600X14000 3500X14000 |
| X/Y-Axis Positioning Accuracy | ±0.050mm/m |
| Laser Power (W) | 12000/20000/30000/40000/60000/80000 |
| Laser Head | BOCI |
| Laser Source | Max Photonics/IPG Photonics |
| Maximum Beveling Angle | 45 Degrees |
Model Variants and Configurations:
| Model no | Description |
| HX2665 | Single Bed |
| HX2665S | Open type Double Pallet (available only until HB2680) |
| HX2665 | Enclosed Double Pallet (available only until HB2680) |
